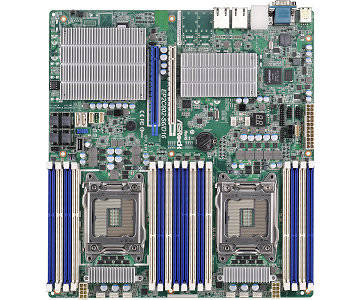

EP2C602-S6/D16

1. EEB 12" x 13"
2. Dual socket LGA 2011, Supports Intel^® Xeon^® Processor E5-1600/2600/4600 & v2 Series
3. 16 x DIMM DDR3 1866/1600/1333/1066 LR / Registered /ECC/ UDIMM, max. 512GB
4. 2 x PCIe 3.0 x16
5. 2 x SATA3, 8 SATA2( from 2x mini SAS 8087 connector) by Intel^® C602 support RAID 0,1,5,10
6. 8 x SAS2 (6Gb/s) from 2 x mini SAS 8087 connector by LSI 2308
7. Intel^® i350  support Dual GLAN
8. ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
9. 9 x USB 2.0 ports (4 rear + 4 via header + 1 Type A)
