Intel^® Xeon^® E-2400 Processors

Intel^® Xeon^® E-2400 processors now feature DDR5 for faster memory with support for Error Correcting Code (ECC) that can automatically correct memory data errors to prevent inadvertent data changes or system crashes.

Intel^® Xeon^® E-2400 processors deliver essential server performance and expandability to support business-critical services and customer data needs. Ideal for small and medium business applications and office automations, such as file/print, e-mail servers, content creation, and web server solutions.

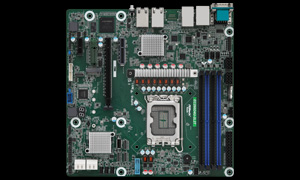

EC266D4U-2L2T

• Micro-ATX (9.6" x 9.6")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe4.0 x1
• 4 OCuLink
• Supports 1 M.2 (PCIe4.0 x4)
• Up to 8 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X710
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

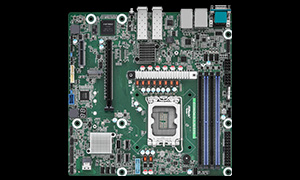

EC266D4U2-2L2Q/E810

• Micro-ATX (9.6" x 9.6")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16, 1 PCIe4.0 x4
• 4 SlimSAS
• 1 M.2 (PCIe4.0 x4)
• Up to 5 SATA 6Gb/s
• 2 SFP28 (25GbE) by Intel® E810-XXVAM2
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

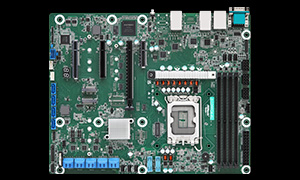

EC266D4-4L

• ATX (12" x 9.6")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16, 1 PCIe5.0 x8, 2 PCIe4.0 x4
• 2 M.2 (PCIe4.0 x4)
• Up to 14 SATA 6Gb/s
• 4 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

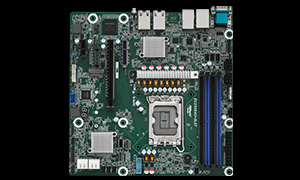

EC262D4U-2L2T

• Micro-ATX (9.6" x 9.6")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe4.0 x1
• 2 OCuLink
• Supports 1 M.2 (PCIe4.0 x4)
• Up to 8 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X710
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

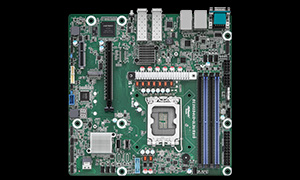

EC262D4U2-2L2Q/E810

• Micro-ATX (9.6" x 9.6")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16, 1 PCIe4.0 x4
• 4 SlimSAS
• 1 M.2 (PCIe4.0 x4)
• Up to 5 SATA 6Gb/s
• 2 SFP28 (25GbE) by Intel® E810-XXVAM2
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

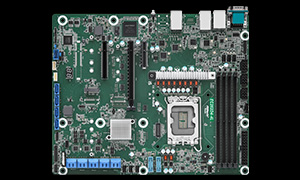

EC262D4-4L

• ATX (12" x 9.6")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16, 1 PCIe5.0 x8, 2 PCIe4.0 x4
• 2 M.2 (PCIe4.0 x4)
• Up to 14 SATA 6Gb/s
• 4 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

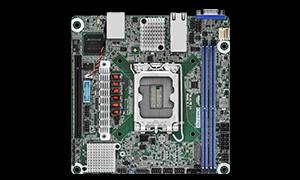

EC266D2I-2T/AQC

• mini-ITX (6.7" x 6.7")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 2 DIMM slots (1DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16
• 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s)
• 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
• 1 M.2 (PCIe4.0 x4)
• Up to 8 SATA 6Gb/s
• 2 RJ45 (10GbE) by Marvell AQC113
• Remote Management (IPMI)

EC266D2I

• mini-ITX (6.7" x 6.7")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 2 DIMM slots (1DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16
• 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s)
• 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
• 1 M.2 (PCIe4.0 x4)
• Up to 8 SATA 6Gb/s
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

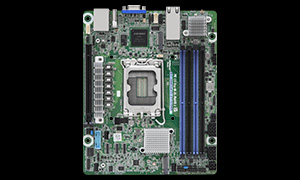

EC266D4ID-2T/X550

• Deep mini-ITX (6.7" x 8.2")
• Supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
• 1 PCIe5.0 x16
• 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s), 1 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
• Supports 2 M.2 (PCIe4.0 x4)
• 8 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel X550
• Supports ATX PSU or 12V DC-in
• Remote Management (IPMI)

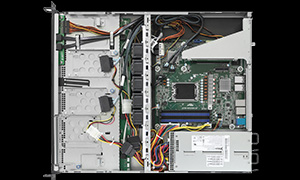

1U4LW-C262/2L2T RPSU

• 1U Rackmount with 1+1, 80-PLUS Platinum, 450W RPSU
• Single Socket V1 (LGA 1700), supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots, supports DDR5 ECC UDIMM
• 4 Hot-swap 3.5" SATA drive bays
• 2 fixed 2.5" NVMe (PCIe4.0 x4) drive bays
• 1 FHHL PCIe5.0 x16
• Supports 1 M.2 (PCIe4.0 x4)
• 2 RJ45 (10GbE) by Intel® X710
• 2 RJ45 (1GbE) by Intel® i210
• Remote management (IPMI)

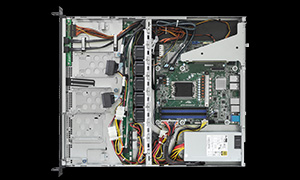

1U4LW-C262/2L2T

• 1U Rackmount with 1, 80-PLUS Glod, 400W PSU
• Single Socket V1 (LGA 1700), supports Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
• 4 DIMM slots, supports DDR5 ECC UDIMM
• 4 Hot-swap 3.5" SATA drive bays
• 2 fixed 2.5" NVMe (PCIe4.0 x4) drive bays
• 1 FHHL PCIe5.0 x16
• Supports 1 M.2 (PCIe4.0 x4)
• 2 RJ45 (10GbE) by Intel® X710
• 2 RJ45 (1GbE) by Intel® i210
• Remote management (IPMI)
