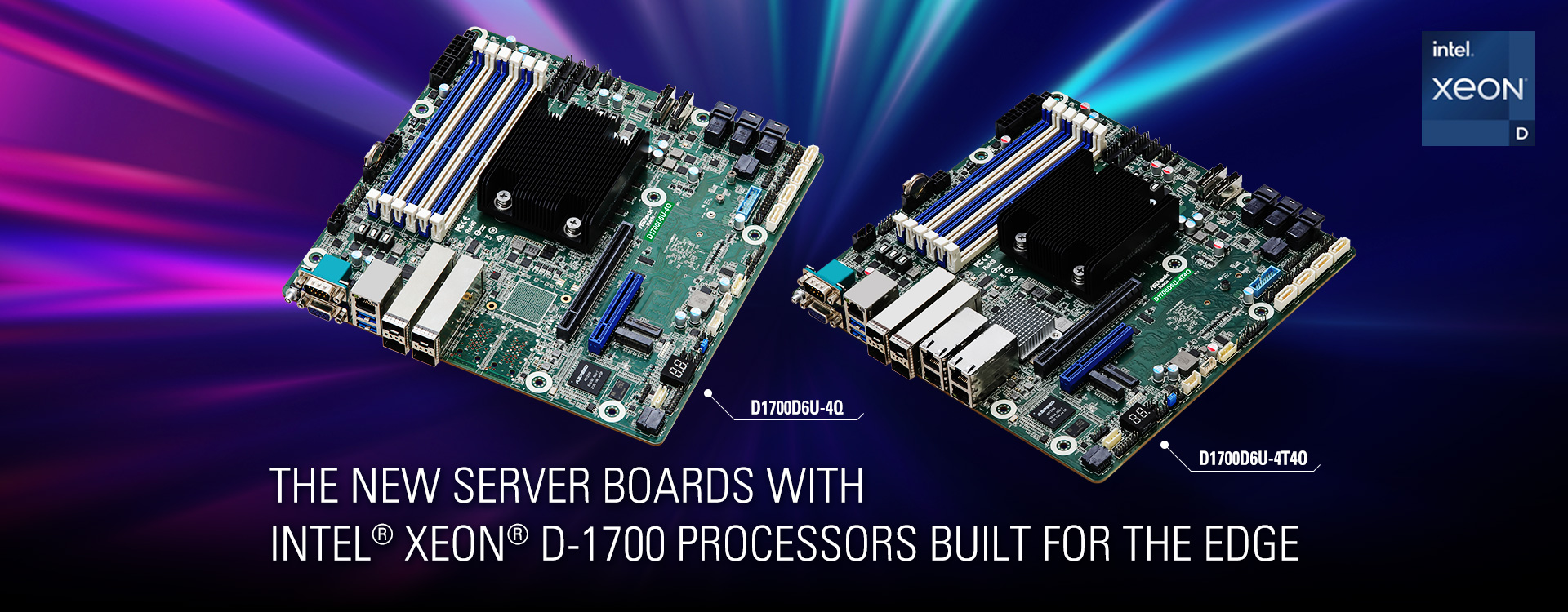

The New Server Boards with Intel® Xeon® D-1700 Processors Built for the Edge

Dense integration of compute and high performance network connectivity delivers high data throughput the edge that your business demands.
Intel® Xeon® D-1700 Processors
    Intel® Xeon® D-1700 processor is the most innovative System-on-a-Chip (SoC) built for the edge featuring with built-in AI, security, advanced IO and ethernet plus dense compute.

Build your Edge Solutions by the Versatile ASRock Rack Server Boards

Thanks to the new Intel® Xeon® D-1700 processors optimized connectivity resources at the edge, ASRock Rack D1700D6U-4Q offers quad SFP28 up to 25GbE and D1700D6U-4T4O provides up to quad 10GbE RJ45 plus quad 10GbE SFP28. By leveraging the Intel ® Xeon® D processor which enables functionality at the edge that your business demands, along with the PCIe and SATA expansion flexibility, ASRock Rack D1700D6U-4Q and D1700D6U-2T2O can be the key to your SDWAN, Secure Access Service Edge (SASE) deployment, or the network attached storage (NAS) systems.

D1700D6U-4Q
  • Micro-ATX (9.6" x 9.6")
  • Supports Intel® Xeon® D-1700 processors
  • Up to 6 DIMM slots* (2DPC), supports DDR4 RDIMM, ECC/non-ECC UDIMM
  • 1 PCIe4.0 x16 or 2 SlimSAS (PCIe4.0 x8)
  • 1 PCIe3.0 x8 or 2 Mini-SAS HD (4 SATA 6Gb/s)
  • Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s) or 4 SATA 7-pin
  • Up to 17 SATA 6Gb/s
  • 4 SFP28 (Up to 25GbE*)
  • Remote management (IPMI)
D1700D6U-4T4O
  • Micro-ATX (9.6" x 9.6")
  • Supports Intel® Xeon® D-1700 processors
  • Up to 6 DIMM slots* (2DPC), supports DDR4 RDIMM, ECC/non-ECC UDIMM
  • 1 PCIe4.0 x16 or 2 SlimSAS (PCIe4.0 x8)
  • 1 PCIe3.0 x8 or 2 Mini-SAS HD (4 SATA 6Gb/s)
  • Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s) or 4 SATA 7-pin
  • Up to 17 SATA 6Gb/s
  • 4 RJ45 (Up to 10GbE*) by Intel® X557-AT4
  • 4 SFP28 (10GbE)
  • Remote management (IPMI)

*DIMM slots quantity and Ethernet throughput will vary based on different Intel® Xeon® D-1700 Processors SKU.
