4^th Gen Intel® Xeon® Scalable Processors

Redefine performance with 4th Gen Intel® Xeon® Scalable processors—featuring built-in accelerators to improve performance across the fastest-growing workloads in AI, analytics, networking, storage, and HPC.

Optimizing streaming data movement and transformation operations common in storage, networking and analytics with Intel® Data Streaming Accelerator (Intel® DSA).

Improve the system performance related to handling network data on multicore Intel® Xeon® Scalable processors with Intel® Dynamic Load Balancer (Intel® DLB).

Reduce compute latency in the data center and lower TCO with Compute Express Link (CXL) 1.1 for next-generation workloads.

Solutions built on Intel® Xeon® Scalable processors offer the most choice and flexibility, no matter the deployment path—on-prem, hybrid cloud, network, or edge.

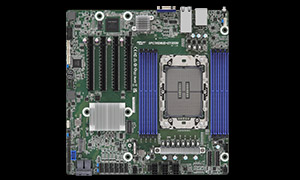

SPC741D8UD-2T/X550

• Deep Micro-ATX (10.4" x 10.5")
• Supports 4th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 4 PCIe5.0 / CXL1.1 x16
• 2 MCIO (PCIe5.0 x8)
• Support 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• Up to 9 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote management (IPMI)

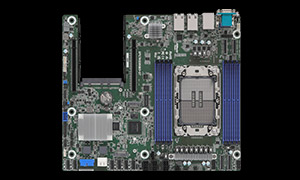

SPC741D8QM3-2T

• - CEB (12'' x 10.5'')
• Supports 4th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Intel® Optane™ Persistent Memory 300 Series
• 1 PCIe5.0 / CXL1.1 x16
• 1 PCIe4.0 x16
• 4 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
• Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• Up to 8 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote management (IPMI)

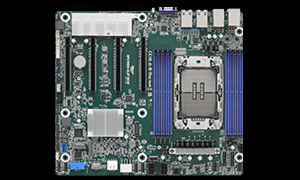

SPC741D8-2L2T/BCM

• CEB (12'' x 10.5'')
• Supports 4th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Intel® Optane™ persistent memory 300 series
• 4 PCIe5.0 / CXL1.1 x16
• 1 SlimSAS (PCIe3.0 x4 or SATA 6Gb/s)
• 2 MCIO (PCIe5.0 x8)
• Supports 2 M.2 slots (PCIe3.0 x4 or SATA 6Gb/s)
• Up to 14 SATA 6Gb/s
• 2 RJ45 (10GbE) by Broadcom -BCM57416
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

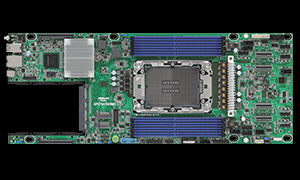

SPC741D8HM3

• Half-width (6.6" x 17")
• Supports 4th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC)), supports DDR5 RDIMM/ RDIMM-3DS
• 2 Slim Cool Edge (PCIe5.0 / CXL1.1 x16)
• 4 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
• 1 OCuLink (PCIe3.0 x2 or 2 SATA 6Gb/s)
• Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
• Up to 8 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• Remote management (IPMI)

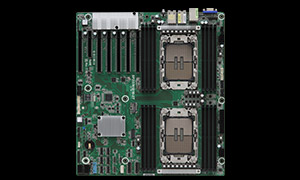

SP2C741D16X-2T

• EEB (12.4" x 14")
• Supports 4th Gen Intel® Xeon® Scalable Processors
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 6 PCIe5.0 / CXL1.1 x16
• 1 PCIe5.0 x8
• 2 MCIO (PCIe5.0 x8)
• Support 1 M.2 (PCIe5.0 x4)
• Up to 13 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X710-AT2
• Remote management (IPMI)

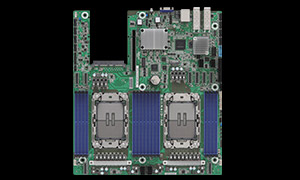

SP2C741D16NQM3-2Q

• EEB (12.8" x 14")
• Supports 4th Gen Intel® Xeon® Scalable Processors
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 1 PCIe5.0 / CXL1.1 x16
• 8 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
• Support 1 M.2 (PCIe5.0 x4)
• Up to 4 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• 2 SFP28 (25GbE) by Broadcom BCM57414
• Remote management (IPMI)

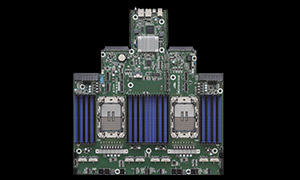

SP2C741D32TM3

• Proprietary (18.87" x 16.85")
• Supports 4th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Intel® Optane™ Persistent Memory 300 Series
• 2 Gen Z 4C (PCIe5.0 / CXL1.1 x16)
• 12 MCIO (PCIe5.0 x8)
• Supports 2 M.2 (PCIe4.0 x4)
• Up to 8 SATA 6Gb/s
• 2 OCP NIC 3.0 (PCIe5.0 x16)
• Remote management (IPMI)

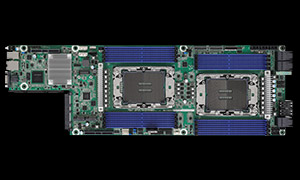

SP2C741D16HM3

• Half-width (6.7" x 21")
• Supports 4th Gen Intel® Xeon® Scalable Processors
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 2 Gen Z 4C (PCIe5.0 / CXL1.1 x16)
• 2 ExaMAX (PCIe5.0 x16)
• 2 MCIO (PCIe5.0 x8)
• Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
• Up to 10 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• Remote management (IPMI)

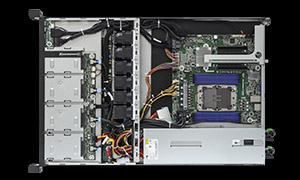

1U4L4E-EGS/2T

• 1U Rackmount with 1+1 Platinum 750W Slim PSU
• Single Socket E (LGA 4677), supports 4th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 4 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS* drive bays, 4 Hot-swap 3.5" SATA drive bays
• 1 FHHL PCIe5.0 x16
• Support 1 M.2 (PCIe3.0 x4)
• 2 RJ45 (10GbE) by Intel® X550
• Remote management (IPMI)

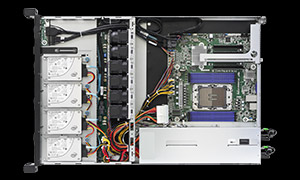

1U4L-EGS/2T

• 1U Rackmount with 1+1 Platinum 750W Slim PSU
• Single Socket E (LGA 4677), supports 4th Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 4 Hot-swap 3.5'' SATA drive bays, 4 fixed 2.5'' SATA drive bays
• 1 FHHL PCIe5.0 x16
• Support 1 M.2 (PCIe3.0 x4)
• 2 RJ45 (10GbE) by Intel® X550
• Remote Management (IPMI)

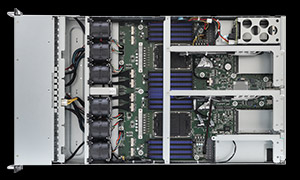

2U4G8E-EGS2

• 2U Rackmount with 1+1 2700W CRPS
• Dual Socket E (LGA 4677), supports 4th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Optane™ Persistent Memory 300 Series
• 8 Hot-swap 2.5" NVMe (PCIe5.0) drive bays, 2 Hot-swap 2.5" SATA drive bays
• 4 FHFL PCIe5.0 x16
• 2 OCP NIC 3.0 (PCIe 5.0 x16)
• Supports 2 M.2 (PCIe4.0 x4)
• Remote management (IPMI)

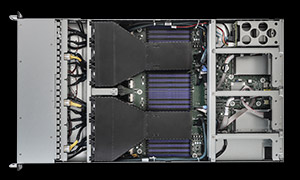

2U24E-EGS2

• 2U Rackmount with 1+1 2700W CRPS
• Dual Socket E (LGA 4677), supports 4th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Optane™ Persistent Memory 300 Series
• 24 Hot-swap 2.5" NVMe drive bays, 2 Hot-swap 2.5" SATA drive bays
• 4 HHHL PCIe 5.0 x16
• 2 OCP NIC 3.0 (PCIe 5.0 x16)
• Supports 2 M.2 (PCIe4.0 x4)
• Remote management (IPMI)

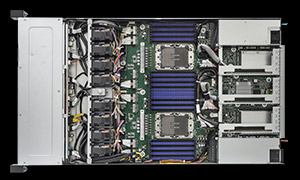

1U12E-EGS2

• 1U Rackmount with 1+1 2100W CRPS
• Dual Socket E (LGA 4677), supports 4th Gen Intel® Xeon® Scalable Processors
• 16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS/ Optane™ Persistent Memory 300 Series
• 12 Hot-swap 2.5" NVMe drive bays
• 2 FHHL PCIe 5.0 x16
• 2 OCP NIC 3.0 (PCIe 5.0 x16)
• Supports 2 M.2 (PCIe4.0 x4)
• Remote management (IPMI)
