MEET YOUR DIVERSE PERFORMANCE AND EFFICIENCY REQUIREMENTS
FOR CLOUD-SCALE WORKLOADS

with Intel® Xeon® 6 Processors

Intel® Xeon® 6 Processor Motherboards and Servers Enable you to Build Platforms
For High AI Performance with Exceptional Efficiency and Cloud Scalability

ASRock Rack provides multiple motherboards and servers
supporting Intel® Xeon® 6 processors to match your business needs.

High compute density and exceptional performance per watt. Intel® Xeon® 6 with E-cores drives density and power efficiency in your data center with a high number of cores per socket—ideal for cloud-scale workloads. ASRock Rack is one of the earliest partners to provide motherboards and servers supporting Intel® Xeon® 6 processors .

What are Intel® Xeon® 6 Processors?

Intel® Xeon® 6 CPUs are designed to meet diverse performance and efficiency requirements. Based on the new socket BR (LGA 7529) and E2 (LGA 4710), Intel introduced two new categories of CPUs: Intel® Xeon® 6 with E-cores to enable data center consolidation; reducing space and power consumption, and the Intel Xeon 6 with P-cores to deliver high performance for multiple computing-intense applications.

Efficient-cores (E-cores) deliver high core density and exceptional performance per watt, offering advantages for cloud-scale workloads that demand high throughput.

Performance-cores (P-cores) excel at a wide range of workloads and provide outstanding AI performance.

All Intel® Xeon® 6 CPUs have a compatible architecture with a shared software stack, so you can find solutions to match any business need.

Intel-Xeon-6-Processors-LOGO
FIND THE SERVER HARDWARE

FIND THE SERVER HARDWARE

FOR Intel® Xeon® 6 SERIES PROCESSORS

ASRock Rack offers a wide range of motherboards and server barebones supporting Intel® Xeon® 6 CPUs to make sure you find the right platform. For example, you can address workloads demanding high performance per core, but also focus indicators such as performance per VM or performance per socket. You find flexible platforms not only for high-performance systems, but also to provide high core densities at lower power consumption.

Meet the Latest ASRock Rack Servers Supporting Intel® Xeon® 6900P-series Processors

GNRAPD12DNO

GNRAPD12DNO

  • M-DNO Type2 (210 x 305.59mm)
  • Supports Intel® Xeon® 6900P-series processors
  • 12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS, MCR DIMM
  • 8 MCIO (PCIe5.0 / CXL2.0 x8)
  • Supports 2 M.2 (PCIe5.0 x4)
  • 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16)
  • 1 DC-SCM 2.0 module
  • Remote management (IPMI)
1U8E1S-GNRAPDNO

1U8E1S-GNRAPDNO

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1600W RPSU
  • Single Socket BR (LGA 7529), supports Intel Xeon 6900P-series processors
  • 12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS, MCR DIMM
  • 8 Hot-swap E1.S (PCIe5.0 x4) drive bays
  • 1 FHHL PCIe5.0 x16, 1 HHHL PCIe5.0 x16
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Supports 2 M.2 (PCIe5.0 x4)
  • 1 DC-SCM 2.0 module
  • Remote Management (IPMI)

Meet the Latest ASRock Rack Servers Supporting Intel® Xeon® 6700E-series Processors

GNRD8UD-2Q

GNRD8UD-2Q

  • Deep Micro-ATX (9.6" x 10.5")
  • Supports Intel® Xeon® 6700E-series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM
  • 2 PCIe5.0 / CXL2.0 x16
  • Up to 6 MCIO (PCIe5.0 / CXL2.0 x8)*
  • 1 MiniSAS HD (4 SATA 6Gb/s) by ASM1061
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 SFP28 (25GbE) by Intel® E810-XXVAM2
  • Remote Management (IPMI)
GNRD8-2L2T

GNRD8-2L2T

  • CEB (12" x 10.5")
  • Single Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM
  • 7 PCIe5.0 / CXL2.0 x16
  • 1 MCIO (PCIe5.0 / CXL2.0 x8)
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X710-AT2
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote Management (IPMI)
GNRD16DNO

GNRD16DNO

  • M-DNO Type2 (210 x 305.59mm)
  • Supports Intel® Xeon® 6700E-series processors
  • 16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 8 MCIO (PCIe5.0 / CXL2.0 x8)
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe5.0 x2)
  • 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16)
  • 1 DC-SCM 2.0 module
  • Remote management (IPMI)
GNRD16QM3-NL

GNRD16QM3-NL

  • EEB (12" x 14")
  • Single Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 8 MCIO (PCIe5.0 / CXL2.0 x8)
  • Supports 2 M.2 (PCIe5.0 x2)
  • 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16)
  • Remote Management (IPMI)
GNR2D16-2T

GNR2D16-2T

  • EEB (12.24" x 13.3")
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 8+8 DIMM slots (1DPC), supports DDR5 RDIMM
  • 5 PCIe5.0 / CXL2.0 x16, 1 PCIe5.0 / CXL2.0 x8
  • 1 MCIO (PCIe5.0 / CXL2.0 x8)
  • Supports 2 M.2 (PCIe5.0 x2)
  • 8 SATA 6Gb/s by ASM1164
  • 2 RJ45 (10GbE) by Intel® X710-AT2
  • Remote Management (IPMI)
GNR2D32FLW

GNR2D32FLW

  • M-FLW (423.18 x 359.99mm)
  • Supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 4 MCIO (PCIe5.0 / CXL2.0 x16), 8 MCIO (PCIe5.0 / CXL2.0 x8)
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16)
  • 1 DC-SCM 2.0 module
  • Remote management (IPMI)
GNR2D32MGX

GNR2D32MGX

  • MGX (424.5 x 305.59mm)
  • Supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 18 MCIO (PCIe5.0 / CXL2.0 x8), 2 MCIO (PCIe5.0 x8), 1 MCIO (PCIe5.0 x4)
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe5.0 x2)
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote management (IPMI)
GNR2D32G-2L+

GNR2D32G-2L+

  • Proprietary (16.93"x 13.79")
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 20 MCIO (PCIe5.0 / CXL2.0 x8), 1 MCIO (PCIe5.0 x8)
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

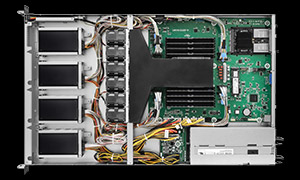

1U16E3S-SRF

1U16E3S-SRF

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1000W CRPS
  • Single Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 16 fixed E3.S (PCIe5.0 x4) drive bay, supports 7.5mm thickness
  • Supports 2 M.2 (PCIe5.0 x2)
  • 1 OCP NIC 3.0 (PCIe5.0 x8)
  • Remote Management (IPMI)
2U2E-GNR2/2T

2U2E-GNR2/2T

  • 2U Rackmount with 1+1, 80-PLUS Platinum, 1600W CRPS
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 8+8 DIMM slots (1DPC), supports DDR5 RDIMM
  • 2 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
  • 5 HHHL single-slot PCIe5.0 x16, 1 HHHL single-slot PCIe5.0 x8
  • 2 M-key (PCIe5.0 x2)
  • 2 RJ45 (10GbE) by Intel X710-AT2
  • Remote management (IPMI)
2U32E3S-GNR2FLW

2U32E3S-GNR2FLW

  • 2U Rackmount with 1+1, 80-PLUS Platinum, 2700W RPSU
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 32 Hot-swap E3.S (PCIe5.0 x4) drive bays
  • 2 OCP NIC 3.0 (PCIe5.0 x16)
  • Supports 2 M.2 (PCIe5.0 x4)
  • 1 DC-SCM 2.0 module
  • Remote management (IPMI)

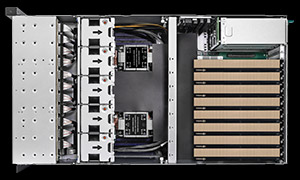

4UMGX-GNR2

4UMGX-GNR2

  • NVIDIA MGX 4U Compliant with 3+1, 80-PLUS Titanium/Platinum, 2700W CRPS
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 8 FHFL dual-slot PCIe5.0 x16, 5 FHHL PCIe5.0 x16, 1 HHHL PCIe5.0 x16
  • 16 Hot-swap E1.S (PCIe5.0 x4) drive bays
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe5.0 x2)
  • Remote Management (IPMI)

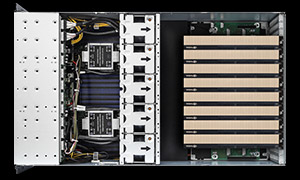

4U8G-GNR2

4U8G-GNR2

  • 4U Rackmount with 3+1, 80-PLUS Platinum/Titanium, 1600W CRPS
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • Up to 24 hot-swap 2.5" SATA/SAS* drive bays *Additional RAID/HBA card required
  • 8 FHFL dual-slot PCIe5.0 x16, 1 FHHL PCIe5.0 x16
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)
6U8X-GNR2/DLC

6U8X-GNR2/DLC

  • 6U Rackmount with 6+2, 80-PLUS Titanium, 3000W CRPS
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • Supports NVIDIA HGX B200 8-GPU with NVIDIA NVSwitch™
  • 8 HHHL PCIe5.0 x16, 5 FHHL PCIe5.0 x16
  • 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch
  • 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU
  • Supports 1 M.2 (PCIe5.0 x2)
  • 2 RJ45 (1GbE) by Intel® i350-AM2
  • Remote management (IPMI)
6U8X-GNR2 H200

6U8X-GNR2 H200

  • 6U Rackmount with 6+2, 80-PLUS Titanium, 3000W CRPS
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • Supports NVIDIA HGX H200 8-GPU with NVIDIA NVSwitch™
  • 8 HHHL PCIe5.0 x16, 5 FHHL PCIe5.0 x16
  • 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch
  • 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU
  • Supports 1 M.2 (PCIe5.0 x2)
  • 2 RJ45 (1GbE) by Intel® i350-AM2
  • Remote management (IPMI)
6U8X-GNR2 H100

6U8X-GNR2 H100

  • 6U Rackmount with 6+2, 80-PLUS Titanium, 3000W CRPS
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • Supports NVIDIA HGX H100 8-GPU with NVIDIA NVSwitch™
  • 8 HHHL PCIe5.0 x16, 5 FHHL PCIe5.0 x16
  • 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch
  • 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU
  • Supports 1 M.2 (PCIe5.0 x2)
  • 2 RJ45 (1GbE) by Intel® i350-AM2
  • Remote management (IPMI)
8U8X-GNR2

8U8X-GNR2

  • 8U Rackmount with 6+2, 80-PLUS Titanium, 3000W CRPS
  • Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700E-series processors
  • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
  • Supports NVIDIA HGX B200 8-GPU with NVIDIA NVSwitch™
  • 8 HHHL PCIe5.0 x16, 5 FHHL PCIe5.0 x16
  • 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch
  • 4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from CPU
  • Supports 1 M.2 (PCIe5.0 x2)
  • 2 RJ45 (1GbE) by Intel® i350-AM2
  • Remote management (IPMI)
