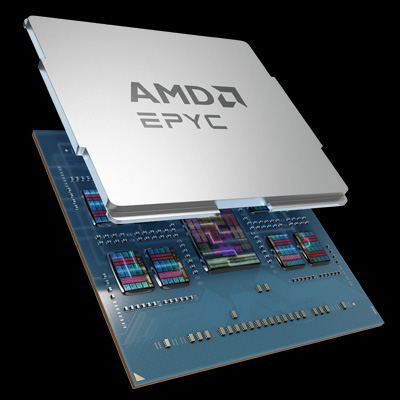

4th Gen AMD EPYC™ Processors Based on “Zen 4c” Architecture

The new 4th Gen AMD EPYC™ 97x4 Processors feature up to 128 SMT-capable (Simultaneous Multithreading), energy-efficient processor cores, allowing new levels of performance, 1U and 2U workload density, energy efficiency and compatibility for cloud native infrastructures. 2P AMD EPYC 97x4 powered servers deliver up to ~3.9x the cloud NGINX workload performance*, anticipated to have up to ~2.5x the Java® VM density throughput with leading workload performance per watt compared to 2P Ampere® Altra® Max M128-30 powered server.

With extensive x86 software compatibility, up to 128 processing cores, multithreading support, standard enterprise RAS (Reliability, Availability and Serviceability) and state-of-the-art security capabilities, customers can get the highest thread density and a full ecosystem of services to support fast, seamless deployment. Systems featuring the 4th Gen AMD EPYC 97x4 Processor can provide a robust, energy- and space efficient environment to run the most demanding and scalable cloud native services and enterprise applications…today and in the future.

*NGINX request/sec WRK comparison based on AMD measured scores as of 5/2/2023. Comparison of 2P AMD EPYC 9754 (~26,247,857 rps) delivers 3.87x the Ampere Altra Max M128-30 (~6,767,951.25 rps). Results may vary. See http://nginx.org/en/ for more information.

Meet the Latest ASRock Rack Servers
Supporting 4th Gen AMD EPYC™ Processors Based on “Zen 4c” Architecture

GENOAD24QM3-2L2T/BCM
  • EEB (12" x 14")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 x16
  • 7 MCIO (PCIe5.0 x8), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
  • Supports 2 M.2 (PCIe5.0 x4)
  • 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)
GENOAD12M3-2Q
  • 9.6" x 13.39"
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL1.1 x16
  • 6 MCIO (PCIe5.0 x8), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
  • Supports 2 M.2 (PCIe5.0 / CXL1.1 x4 or 4 SATA 6Gb/s)
  • Up to 24 SATA 6Gb/s
  • 2 SFP28 (25GbE) by Broadcom BCM57414
  • 1 OCP NIC 3.0 (PCIe5.0 / CXL1.1 x16)
  • Remote Management (IPMI)
GENOAD8X-2T/BCM
  • EEB (12.63" x 13")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 PCIe5.0 / CXL1.1 x16*, 3 PCIe5.0 x16, 1 PCIe5.0 x8**
  • 2 MCIO** (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s), 1 MCIO* (PCIe5.0 x4)
  • Supports 1 M.2 (PCIe5.0 x4 or SATA 6Gb/s), 1 M.2* (PCIe5.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • Remote Management (IPMI)
GENOAD8UD-2T/X550
  • 10.4" x 10.5"
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 PCIe5.0 / CXL1.1 x16
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8), 1 MCIO (PCIe5.0 x4)
  • Supports 2 M.2 (PCIe5.0 x4)
  • Up to 16 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)
  • Support ATX PSU or 12V DC-IN
GENOAD8HM3
  • Half-width (6.6" x 17")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 x16, 1 PCIe5.0 x8
  • 2 MCIO* (PCIe5.0 x8 or 8 SATA 6Gb/s), 6 MCIO (PCIe5.0 x8)
  • 1 OCuLink (2 SATA 6G/b) by ASM1061R
  • 1 M.2 (PCIe5.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
  • Up to 20 SATA 6Gb/s
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)
GENOAD8QM3-2T/BCM
  • CEB (12" x 11")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 / CXL1.1 x16
  • 1 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe5.0 / CXL1.1 x4 or SATA 6Gb/s)
  • Up to 26 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)
GENOA2D24TM3-2L+
  • Proprietary T-shape (18.8607" x17.0149")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 Gen-Z HP+8C (2 PCIe5.0 x16 / 2 CXL1.1 x16), 1 Gen-Z 4C+ (PCIe5.0 / CXL1.1 x16)
  • 4 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe3.0 x4)
  • Up to 32 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i350
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)
GENOA2D24G-2L+
  • Proprietary (16.93" x13.78")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 MCIO (PCIe5.0 / CXL1.1 x8), 4 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • Up to 34 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)
GENOA2D16NQM3-2Q
  • EEB (12.8" x14")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8+8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 1 PCIe5.0 x16
  • 4 MCIO (PCIe5.0 / CXL1.1 x8), 1 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)*
  • 2 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s), 1 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
  • Up to 18 SATA 6Gb/s
  • 2 SFP28 (25GbE) by Broadcom BCM57414
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

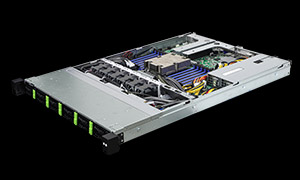

1U12E-GENOA/2L2T
  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1000W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 2 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • Remote Management (IPMI)

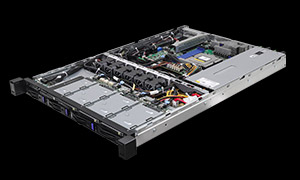

1U4L4E-GENOA/2T
  • 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 4 hot-swap 3.5" SATA drive bays
  • 1 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)

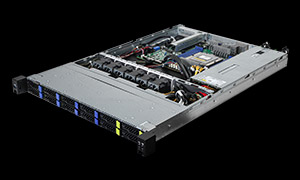

1U8S4E-GENOA/2T
  • 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 8 hot-swap 2.5" SATA drive bays
  • 1 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)

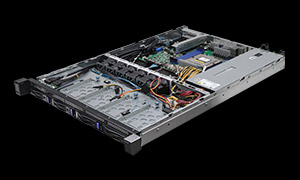

1U4L-GENOA/2T
  • 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 hot-swap 3.5" SATA drive bays
  • 4 fixed 2.5" SATA drive bays
  • 1 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)

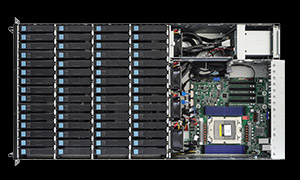

4U60L8E-GENOA/2T
  • 4U Rackmount with 2+2, 80-PLUS Platinum, 800W CRPS
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • Up to 60 Hot-swap 3.5" SATA/SAS drive bays
  • 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • 4 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote management (IPMI)
4U36L6E-GENOA/2T
  • 4U Rackmount with 1+1, 80-PLUS Platinum, 1200W PSU
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • Up to 36 Hot-swap 3.5" SATA/SAS drive bays
  • 6 Hot-swap 2.5" NVMe (PCIe3.0 x4) drive bays
  • 3 HHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote management (IPMI)

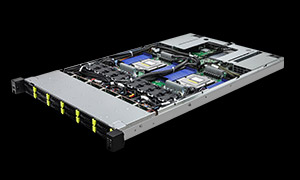

1U12E-GENOA2
  • 1U Rackmount with 1+1, 80-PLUS Platinum, 1600W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 2 FHHL PCIe5.0 x16
  • Supports 2 M.2 (PCIe3.0 x4)
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)

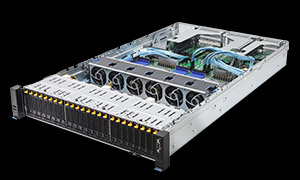

2U24E-GENOA2
  • 2U Rackmount with 1+1, 80-PLUS Titanium, 2600W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 24 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
  • 2 fixed 2.5" NVMe (PCIe5.0 x4) drive bays
  • 1 FHHL PCIe4.0 x16 or 2 FHHL PCIe4.0 x8
  • 1 FHHL PCIe4.0 x16 or 2 FHHL PCIe4.0 x8
  • 1 HHHL PCIe4.0 x8
  • Supports 2 M.2 (PCIe3.0 x4)
  • 2 RJ45 (1GbE) by Intel® i350
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

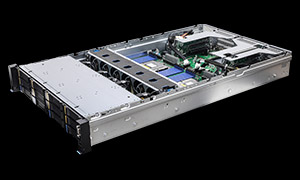

2U12L8E-GENOA2
  • 2U Rackmount with 1+1, 80-PLUS Platinum, 2000W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 8 hot-swap 3.5"/2.5" NVMe (PCIe4.0 x4)/SATA drive bays
  • 4 hot-swap 3.5"/2.5" SATA drive bays
  • 2 fixed 2.5" NVMe (PCIe5.0 x4) drive bays
  • 2 FHHL PCIe4.0 x16 or 1 FHHL PCIe4.0 x16, 2 FHHL PCIe4.0 x8
  • 2 FHHL PCIe4.0 x16 or 1 FHHL PCIe4.0 x16, 2 FHHL PCIe4.0 x8
  • 1 HHHL PCIe4.0 x16 or 2 HHHL PCIe4.0 x8
  • Supports 2 M.2 (PCIe3.0 x4)
  • 2 RJ45 (1GbE) by Intel® i350
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

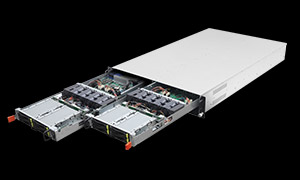

2U4N-F/GENOA-M3
  • 2U 4-node chassis with 1+1, 80-PLUS Platinum/Titanium, 2600W CRPS
  • Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors per node
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS per node
  • 4 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays or 8 Hot-swap 9.5mm E1.S (PCIe5.0 x4) drive bays per node
  • 2 HHHL PCIe5.0 x16 per node
  • Supports 1 M.2 (PCIe5.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe4.0 x4 or SATA 6Gb/s) per node
  • 1 OCP NIC 3.0 (PCIe5.0 x16) per node
  • Remote Management (IPMI) per node

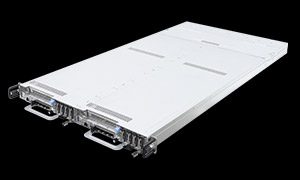

1U2N-F/GENOA2
  • 1U 2-node chassis with 1+1, 80-PLUS Platinum, 2000W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors per node
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS per node
  • 4 hot-swap 9.5/15mm E1.S (PCIe5.0 x4) drive bays per node or 2 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays per node
  • 1 FHHL PCIe5.0 x16 per node
  • Supports 2 M.2 (PCIe5.0 x4) per node
  • 1 OCP NIC 3.0 (PCIe5.0 x16) per node
  • Remote Management (IPMI) per node

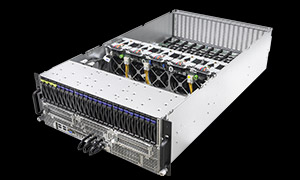

4U8G-GENOA2
  • 4U Rackmount with 3+1, 80-PLUS Platinum, 1600W CRPS
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays, 20 Hot-swap 2.5” SATA drive bays
  • 8 FHFL dual-slot PCIe5.0 x16, 1 FHHL PCIe5.0 x8
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • 1 OCP NIC 3.0 (PCIe5.0 x8)
  • 2 RJ45 (1GbE) by Intel® i350
  • Remote Management (IPMI)
