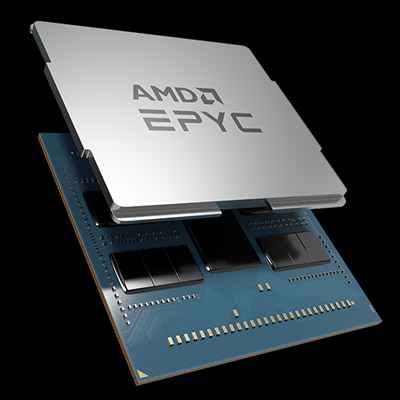

AMD EPYC™ 9004 Series Processors

With next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O, the 4th Gen EPYC Processors deliver the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.

“Building on the record-breaking performance of 3rd Gen AMD EPYC Processors, the latest 4th Gen AMD EPYC Processors help our customers achieve better business outcomes faster and address their most ambitious energy efficiency goals. Our new “Zen 4” architecture is optimized for modern workloads and delivers the core density, memory bandwidth and sophisticated security features customers demand,” said Ram Peddibhotla, corporate vice president, EPYC product management, AMD.

GENOAD8UD-2T/X550

• 10.4" x 10.5"
• Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
• 4 PCIe5.0 / CXL1.1 x16
• 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8), 1 MCIO (PCIe5.0 x4)
• Supports 2 M.2 (PCIe4.0 x4)
• Up to 16 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote Management (IPMI)
• Support ATX PSU or 12V DC-IN

GENOA2D24TM3-2L+

• Proprietary T-shape (18.8607" x17.0149")
• Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
• 2 Gen-Z HP+8C (2 PCIe5.0 x16 / 2 CXL1.1 x16), 1 Gen-Z 4C+ (PCIe5.0 / CXL1.1 x16)
• 4 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8)
• Supports 2 M.2 (PCIe3.0 x4)
• Up to 32 SATA 6Gb/s
• 2 RJ45 (1GbE) by Intel® i350
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• Remote Management (IPMI)

GENOAD24QM3-2L2T/BCM

• EEB (12" x 14")
• Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
• 4 PCIe5.0 x16
• 7 MCIO (PCIe5.0 x8), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
• Supports 2 M.2 (PCIe5.0 x4)
• 16 SATA 6Gb/s
• 2 RJ45 (10GbE) by Broadcom BCM57416
• 2 RJ45 (1GbE) by Intel® i210
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• Remote Management (IPMI)

1U4L4E-GENOA/2T

• 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
• Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
• 4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
• 4 hot-swap 3.5" SATA drive bays
• 1 FHHL PCIe5.0 x16
• Supports 2 M.2 (PCIe4.0 x4)
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote Management (IPMI)

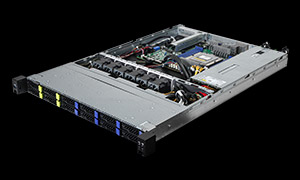

1U8S4E-GENOA/2T

• 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
• Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
• 4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
• 8 hot-swap 2.5" SATA drive bays
• 1 FHHL PCIe5.0 x16
• Supports 2 M.2 (PCIe4.0 x4)
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote Management (IPMI)

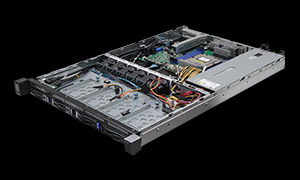

1U4L-GENOA/2T

• 1U Rackmount with 1+1, 80-PLUS Platinum, 750W Slim PSU
• Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
• 4 hot-swap 3.5" SATA drive bays
• 4 fixed 2.5" SATA drive bays
• 1 FHHL PCIe5.0 x16
• Supports 2 M.2 (PCIe4.0 x4)
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote Management (IPMI)

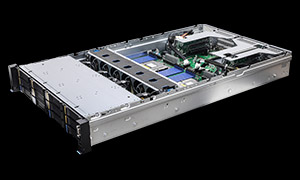

2U12L8E-GENOA2

• 2U Rackmount with 1+1, 80-PLUS Platinum, 2000W CRPS
• Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
• 8 hot-swap 3.5"/2.5" NVMe (PCIe4.0 x4)/SATA drive bays
• 4 hot-swap 3.5"/2.5" SATA drive bays
• 2 fixed 2.5" NVMe (PCIe5.0 x4) drive bays
• 2 FH PCIe4.0 x16 or 1 FH PCIe4.0 x16, 2 FH PCIe4.0 x8
• 2 FH PCIe4.0 x16 or 1 FH PCIe4.0 x16, 2 FH PCIe4.0 x8
• 1 low-profile PCIe4.0 x16 or 2 low-profile PCIe4.0 x8
• Supports 2 M.2 (PCIe3.0 x4)
• 2 RJ45 (1GbE) by Intel® i350
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• Remote Management (IPMI)

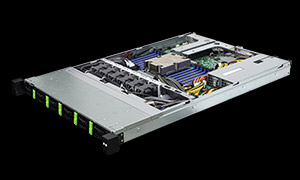

1U12E-GENOA/2L2T

• 1U Rackmount with 1+1, 80-PLUS Platinum, 1000W Slim PSU
• Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 24 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
• 12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
• 2 FHHL PCIe5.0 x16
• Supports 2 M.2 (PCIe5.0 x4)
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• 2 RJ45 (10GbE) by Broadcom BCM57416
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

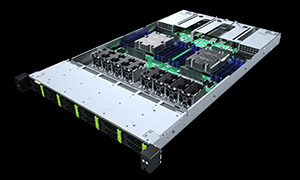

1U12E-GENOA2

• 1U Rackmount with 1+1, 80-PLUS Platinum, 1600W Slim PSU
• Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 series processors
• 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
• 12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
• 3 HHHL PCIe5.0 x16
• Supports 2 M.2 (PCIe3.0 x4)
• 1 OCP NIC 3.0 (PCIe5.0 x16)
• 2 RJ45 (1GbE) by Intel® i350
• Remote Management (IPMI)
