AMD EPYC™ 8004 Series Processors

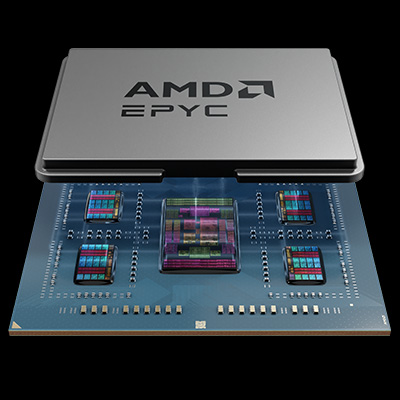

AMD EPYC™ 8004 Processors complement the 4th Generation AMD EPYC processor family, extending the established high efficiency "Zen4c” core architecture into lower core count CPU offerings with TDP ranges as low as 80W. AMD EPYC™ 8004 Processors are purpose-built to deliver strong performance, energy efficiency and built-in security capabilities in an optimized, single-socket package suitable for traditional data centers as well as diverse edge server deployments and form factors for manufacturing, healthcare, retail, telco and more.

SIENAD8UD-2L2Q

• Supports ATX PSU and 12V DC-in
• Deep Micro-ATX (9.6" x 10.5")
• Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8004 series processors
• 8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
• 2 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 / CXL1.1 x8
• 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4)
• 2 M.2 (PCIe5.0 x4)
• Up to 16 SATA 6Gb/s
• 2 RJ45 (1GbE) by Intel i210
• 2 SFP28 (25GbE) by Broadcom BCM57414
• Remote Management (IPMI)

SIENAD8UD2-2Q

• Supports ATX PSU and 12V DC-in
• Deep Micro-ATX (9.6" x 10.5")
• Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8004 series processors
• 8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
• 2 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 / CXL1.1 x8
• 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4)
• 2 M.2 (PCIe5.0 x4)
• Up to 16 SATA 6Gb/s
• 2 SFP28 (25GbE) by Broadcom BCM57502
• Remote Management (IPMI)

SIENAD8UD3

• Supports ATX PSU and 12V DC-in
• Deep Micro-ATX (9.6" x 10.5")
• Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8004 series processors
• 8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
• 2 PCIe5.0 / CXL1.1 x16
• 4 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 3 MCIO (PCIe5.0 x8)
• 1 OCuLink (PCIe3.0 x4)
• 2 M.2 (PCIe5.0 x4)
• Up to 32 SATA 6Gb/s
• 2 RJ45 (1GbE) by Intel® i210
• Remote Management (IPMI)

SIENAD8-2L2T

• ATX (12" x 9.6")
• Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8004 series processors
• 8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
• 3 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 x16, 1 PCIe5.0 x8
• 2 MCIO (PCIe5.0 x8)
• 2 M.2 (PCIe5.0 x4)
• 2 RJ45 (1GbE) by Intel® i210
• 2 RJ45 (10GbE) by Intel® X710-AT2
• Remote Management (IPMI)

SIENAD10HM3

• Half-width (6.6" x 17")
• Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8004 series processors
• 10 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
• 2 Slim cool edge (PCIe5.0 x16)
• 1 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s)
• 1 OCuLink (PCIe3.0 x4)
• 1 OCuLink (2 SATA 6G/b) by ASM1061R
• 2 M.2 (PCIe5.0 x4 or SATA 6Gb/s)
• Up to 10 SATA 6Gb/s
• 1 OCP NIC 3.0 (PCIe5.0 x16), 2 OCP NIC 3.0 (PCIe5.0 / CXL1.1 x16)
• Remote Management (IPMI)
