Grow your Business
with Economical Servers
for Critical Business Workloads

Powered By AMD EPYC™ 4004 Series Processors

AMD EPYC™ 4004 Processor Motherboards and Servers
Designed for Low-Cost Systems to Grow Your Business

ASRock Rack provides multiple server-grade platforms
supporting AMD EPYC™ 4004 CPUs

The AMD EPYC™ 4004 Processors are ideal for server platforms in small and medium businesses, office environments, and for hosted IT service providers. AMD provides highly competitive server CPUs with low costs per core across different core counts, while also offering higher core count options. ASRock Rack is one of the earliest partners to provide motherboards for AMD EPYC™ 4004 server systems.

WHAT ARE AMD EPYC™ 4004 CPUs?

AMD EPYC™ 4004 Processors bring the established "Zen 4 core architecture into an expanded range of new entry level server system designs As an addition to the AMD EPYC™ Family of Processors, the AMD EPYC™ 4004 CPUs provides server grade reliability in a single socket package to help ensuring affordability, performance, and ease of management While enabling low system level configuration acquisition costs, AMD EPYC™ 4004 CPUs deliver server grade features

For example, it supports up to 192 GB of DDR 5 ECC memory at up to 5200 MT/s, and also comes with support for Server Operating Systems ( as well as Remote Management ( Moreover, AMD EPYC™ 4004 CPUs support up to 28 lanes of PCI Express 5

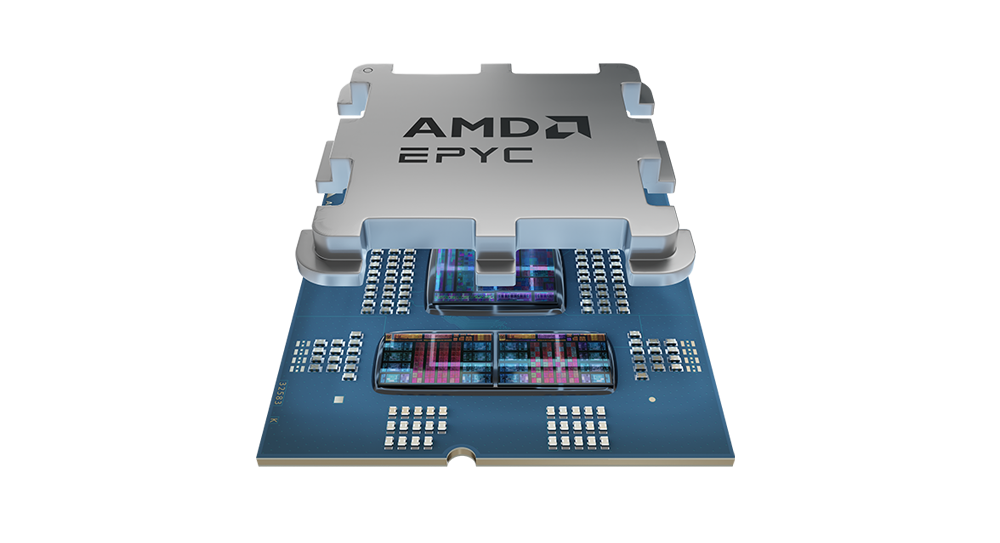

AMD_EPYC_4004_chipshot
FIND THE SERVER HARDWARE

FIND THE SERVER HARDWARE

FOR AMD EPYC™ 4004 SERIES PROCESSORS

The motherboard or barebone server of your choice should provide server-grade features to ensure you maximize the potential of your CPU. For example, the AMD EPYC™ Processors offer support for server operating systems such as Windows Server 2022, RHEL 8 and 9, SLES SP4 & ALP, Ubuntu 22.04 and 24.04, BMC validation/support, and SW RAID support. You should make sure your hardware is also designed to run critical business workloads and provides server-grade features such as remote management.

SEE THE LATEST ASROCK RACK SERVERS AND MOTHERBOARDS
SUPPORTING AMD EPYC™ 4004 SERIES PROCESSORS

Enhancing Data Center Performance and Efficiency with AMD EPYC™ 4004 and ASRock Rack Motherboards

B650D4U-2L2T/BCM

B650D4U-2L2T/BCM

  • Micro-ATX (9.6"x 9.6")
  • Support AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)
B650D4U-2T/BCM

B650D4U-2T/BCM

  • Micro-ATX (9.6"x 9.6")
  • Support AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)
B650D4U

B650D4U

  • Micro-ATX (9.6"x 9.6")
  • Support AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)
AM5D4ID-2T/BCM

AM5D4ID-2T/BCM

  • Deep mini-ITX (6.7"x 8.2")
  • Support AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 OCuLink (PCIe4.0 x2)
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 1 HDMI
  • Remote management (IPMI)
AAM5D4ID-2L+/BCM

AM5D4ID-2L+/BCM

  • Deep mini-ITX (6.7"x 8.2")
  • Support AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16
  • 1 OCuLink (PCIe4.0 x2)
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (1GbE) by Broadcom BCM5720L
  • 1 HDMI
  • Remote management (IPMI)

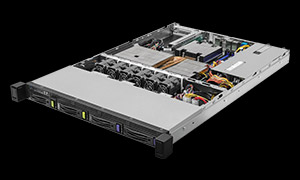

1U4L2E-B650 RPSU

1U4L2E-B650 RPSU

  • 1U Rackmount with 1+1, 80-PLUS Platinum, 650W Slim PSU
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 2 hot-swap 2.5" NVMe* (PCIe4.0 x4) or 3.5" SATA drive bays
  • 2 hot-swap 3.5" SATA drive bays
  • 1 FHHL PCIe4.0 x16
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2* (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)

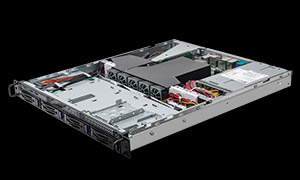

1U4LW-B650/2L2T RPSU

1U4LW-B650/2L2T RPSU

  • 1U Rackmount with 450W Redundant PSU (1+1)
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 4 hot-swap 3.5" SATA drive bays
  • 1 FH PCIe4.0 x16
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)

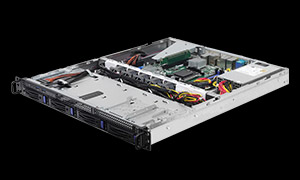

1U4LW-B650/2L2T

1U4LW-B650/2L2T

  • 1U Rackmount with 1, 80-PLUS Gold, 400W PSU
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 4 hot-swap 3.5" SATA drive bays
  • 1 FH PCIe4.0 x16
  • Supports 1 M.2 (PCIe5.0 x4)
  • 2 RJ45 (10GbE) by Broadcom BCM57416
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)

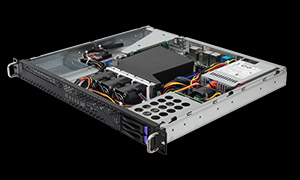

1U2S-B650

1U2S-B650

  • 1U Rackmount with 1, 80-PLUS Gold, 315W PSU
  • Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 2 hot-swap 2.5" SATA drive bays
  • 1 fixed 3.5" SATA drive bay or 1 Slim ODD
  • 1 FHHL PCIe4.0 x16
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)

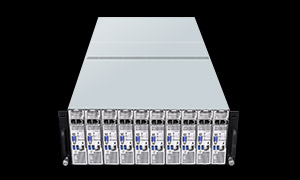

4U18N-AM5/2T

4U18N-AM5/2T

  • 4U chassis with 18 nodes support 36 x 2.5'' NVMe SSD, 2000W Redundant (2+2) PSU
  • Supports AMD EPYC™ 4004 and AMD Ryzen™ 8000/7000 series Processors
  • 4 DDR5 ECC/ non-ECC UDIMM, up to 32GB each
  • Supports 2 x 2.5" NVMe SSD per node
  • Supports 1 M.2 per node
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 2x RJ45 (10GbE) by Broadcom BCM57416)

Q&A

Q: Do AMD Ryzen™ 7000 and AMD EPYC™ 4004 CPUs Use the Same Motherboard?

A: AMD EPYC™ 4004 and AMD Ryzen™ 7000 Series Processors are both designed for single socket AM5 platforms and share the same TDP range (65-170 Watts). Thus, in most cases, a motherboard could theoretically support both, allowing you to replace your AMD Ryzen™ 7000 CPU with an EPYC™ 4004 processor, for example. However, only with a server-grade motherboard you are able to leverage the full potential of your AMD EPYC™ 4004 CPU. AMD Ryzen™ processors are designed for consumer-grade desktop systems, while AMD EPYC™ processors are intended for enterprise-level servers.
