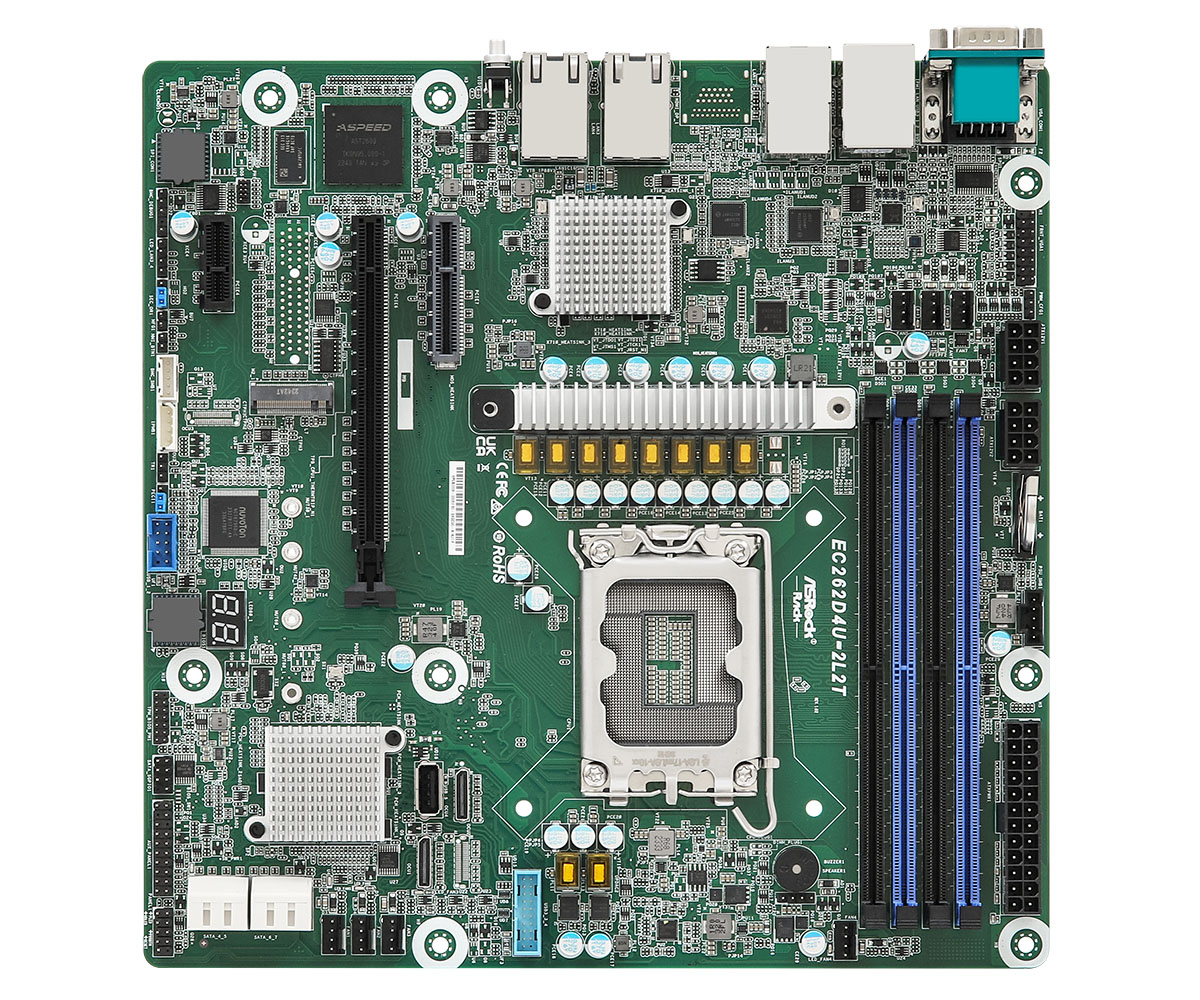

EC262D4U-2L2T

  1. Micro-ATX (9.6" x 9.6")
  2. Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
  3. 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
  4. 1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe4.0 x1
  5. 2 OCuLink
  6. Supports 1 M.2 (PCIe4.0 x4)
  7. Up to 8 SATA 6Gb/s
  8. 2 RJ45 (10GbE) by Intel® X710
  9. 2 RJ45 (1GbE) by Intel® i210
  10. Remote Management (IPMI)

Характеристики

 Параметры материнской платы
Форм-факторMicro-ATX
Габариты9.6'' x 9.6'' (244 mm x 244 mm)
 Блок процессора
CPUSupports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
РазъемSingle Socket V1 (LGA 1700)
Питание95W
ЧипсетIntel® C262
 Память
Емкость4 DIMM slots (2DPC)
ТипSupports DDR5 288-pin ECC UDIMM
DIMM Size Per DIMM32GB
Max. DIMM Frequency4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
Напряжение1.1V
 Слоты расширения PCIe
PCIe x 16SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4SLOT7: PCIe4.0 x4* [CPU]

*SLOT7 share lanes with OCuLink4. OCuLink4 will disable when SLOT7 is populated
PCIe x 1SLOT4: PCIe4.0 x1 [PCH]
 TPM
TPM support1 (13-pin, SPI)
 Накопитель SATA/SAS
Контроллер SATAIntel® C262 (8 SATA 6Gb/s; RAID 0/1/5/10):
4 SATA 7-pin, 1 OCuLink
OCuLink for U.21 OCuLink (PCIe4.0 x4)* [CPU]
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]

*OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated
M.2 slot1 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor [PCH]
 Ethernet
Контроллер GbE LAN2 RJ45 (10GbE) by Intel® X710
2 RJ45 (1GbE) by Intel® i210
 Управление сервером
Контроллер BMCASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 Графика
КонтроллерASPEED AST2600:
1 DB15 (VGA)
 Вход-выход задней панели
Порт VGA1 DB15 (VGA)
Порты USB 3.02 Type-A (USB3.2 Gen1)
Порт Lan2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
Последовательный порт1 DB9 (COM)
UID Button/UID LED1 UID button w/ LED
 Внутренние разъемы
Power Connector1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Front Lan LED Connector 1
Auxiliary Panel Header1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TPM1 (13-pin, SPI)
Датчик температуры1
IPMB1
VGA1
Зуммер1
Вентилятор7 (4-pin)
USB 3.2 (Gen1) Header1 header (19-pin, 2 USB3.2 Gen1)
USB 2.01 header (9-pin, 2 USB2.0)
Порт USB 2.0 тип А1 vertical Type-A (USB2.0)
NMI Header1
System Panel1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Динамик1 (4-pin)
BMC_SMB Header1
SGPIO Header1
Clear CMOS1 (contact pads)
 LED на плате
Standby PWR LED1 (5VSB)
Port 80 LED1
Fan Fail LED7
BMC heartbeat LED1
 BIOS
Тип BIOSAMI 256Mb SPI Flash ROM
Особенности BIOSPlug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash
 Аппаратный мониторинг
ТемператураCPU, MB, Card side, VR, DDR5, PCH, M.2, X710, TR1 Temperature sensing
ВентиляторFan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Напряжение3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12V
 Совместимые ОС
ОСMicrosoft® Windows:
- Windows® Server 2022
- Azure Stack HCI

Linux:
- RHEL 8.5
- SLES 15 SP3
- Ubuntu 21.04 LTS

Hypervisor:
- VMware ESXi 8.0 u1
- Linux KVM (Linux OSes)
- Hyper-V (Windows® Server)
 Рабочая обстановка
ТемператураOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
HumidityNon operation humidity: 20% ~ 90% ( Non condensing)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
