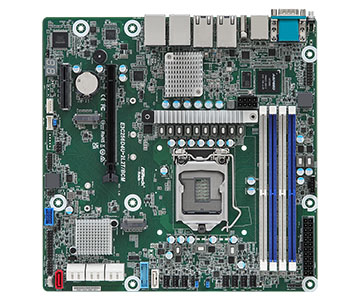

E3C256D4U-2L2T/BCM
- Micro-ATX (9.6" x 9.6")
- Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1 PCIe4.0 x16, 1 PCIe4.0 x4
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x4)
- 8 SATA 6Gb/s
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel® i210
- VGA, HDMI
- Remote Management (IPMI)
Print
HDMI™ (High-Definition Multimedia Interface)
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
